- Low GWP R513A refrigerant, environmentally responsible alternative to legacy refrigerants. Supports compliance with evolving climate regulations
- Durable multi-stage heat exchangers ensure dew point stability, allowing for high inlet temperatures up to 200°F (93°C).
- Integrated moisture separator reduces installation complexity and cost by eliminating the need for external components (60-100 CFM)
- Multi-stage cooling with aftercooler and condenser combo to improve dew point performance and system efficiency (60–100 scfm models)
- Smart controller with LED indicators, includes alarm history and energy-saving mode for enhanced monitoring and control (60–100 scfm models)
- Plug & play installation, 115V/60Hz standard with wall plug included for fast setup
- UL/CSA certified, meets UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, and CSA 22.2 #60335-2-40 safety standards

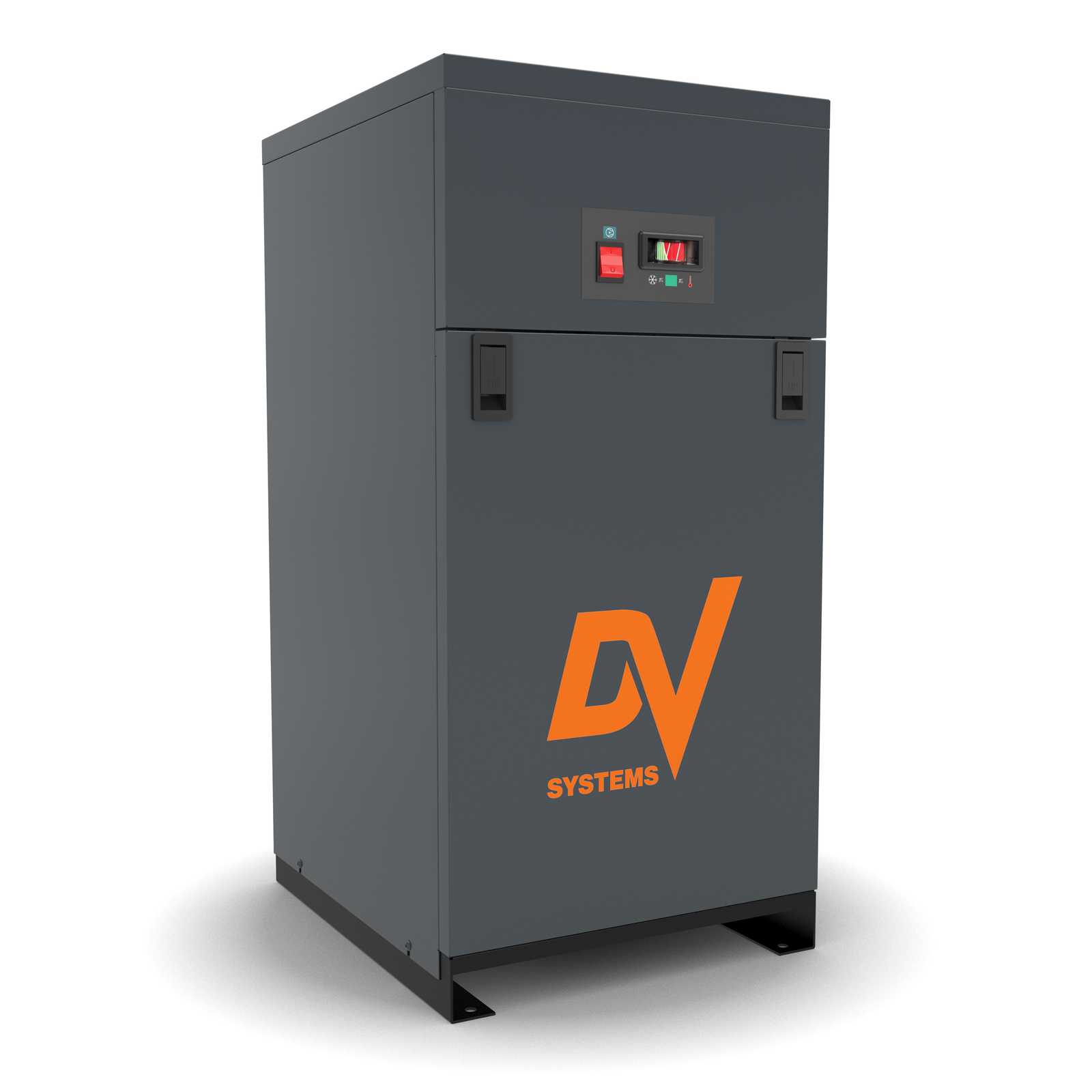

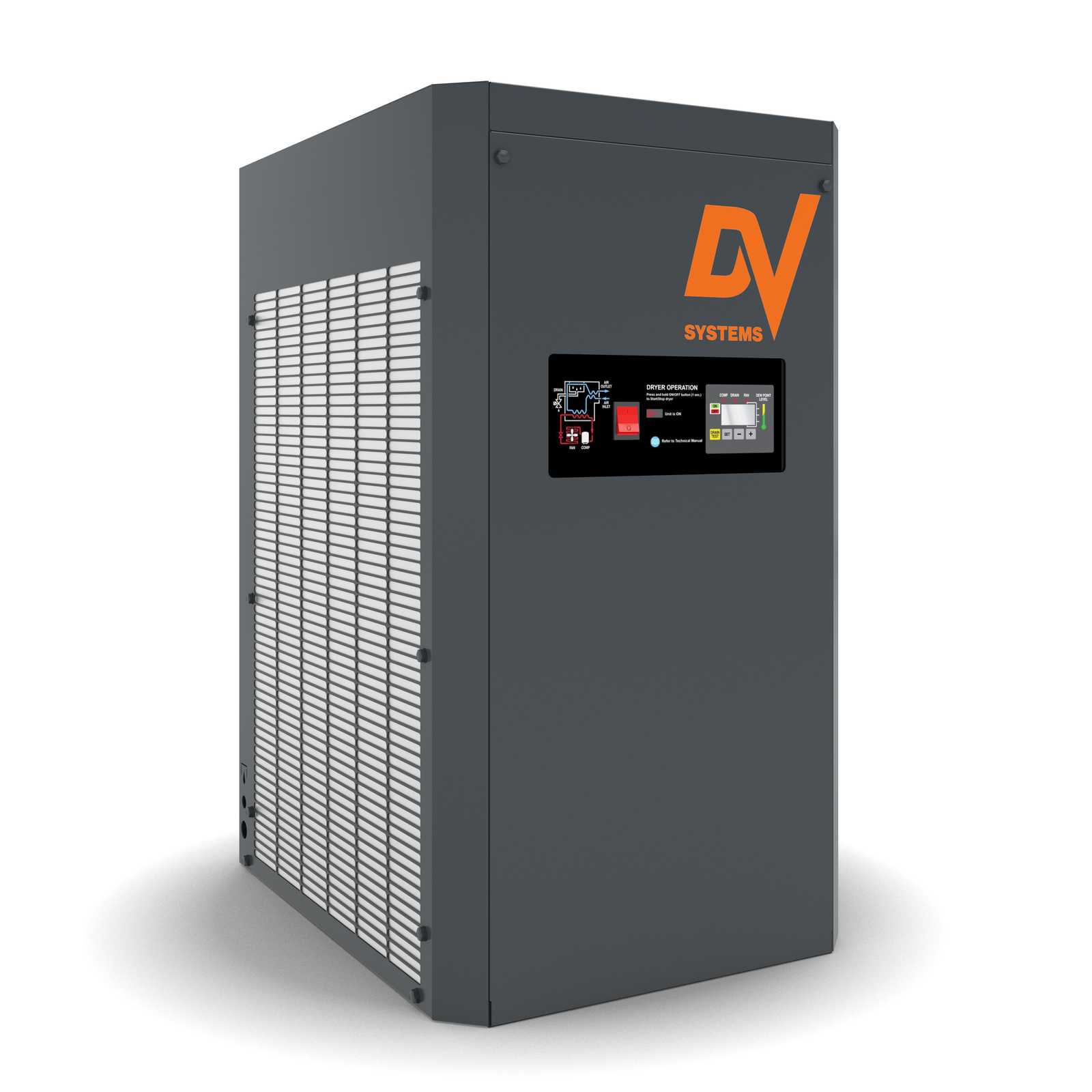

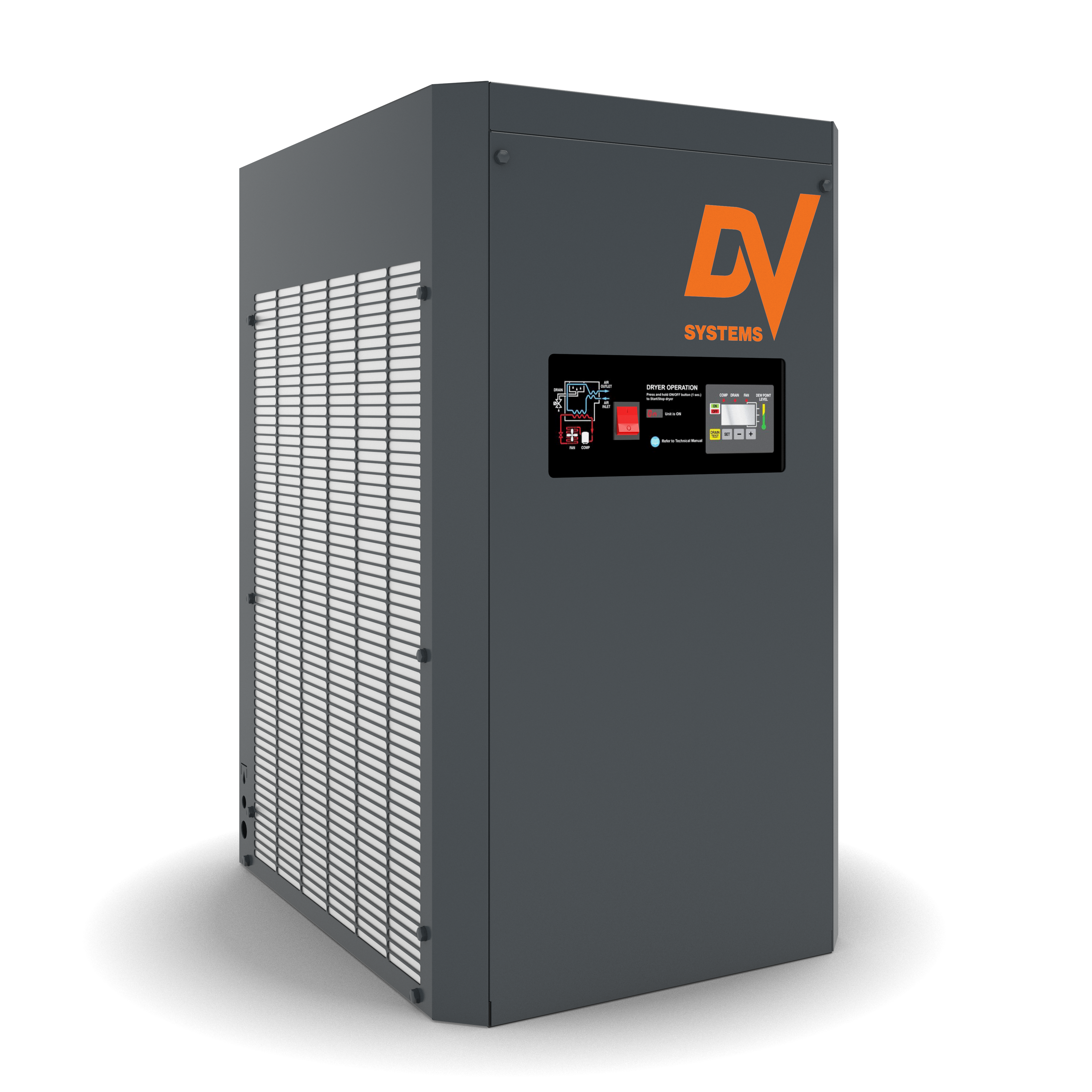

The DVH Series refrigerated dryers have a compact design and were engineered to work with reciprocating compressors up to 25 horsepower. A unique heat exchanger allows the dryer to accept high inlet temperatures, up to 200° F (93° C). This allows compressed air users to send high temperature air straight from their compressor directly to the DVH Series refrigerated dryer.
The DVH Series is ideally suited for auto body shops, auto service centers, and other light industrial facilities where operational uptime is critical.
MODEL | Inlet Flow SCFM* | Inlet Flow NM³/H | Pressure Drop PSID | VOLTAGES | IN/OUT AIR CONNECT SIZE | Power Consumption KW | Refrigerant | OVERALL DIMENSIONS W IN. | OVERALL DIMENSIONS D IN. | OVERALL DIMENSIONS H IN. | SHIP Weight LBS. |
DVHA15A100 | 15 | 25.5 | 0.8 | 115/1/60 | 3/4" MNPT | 0.48 | R513A | 14.6 | 16.9 | 29.7 | 110 |
DVHA25A100 | 25 | 42.5 | 1.8 | 115/1/60 | 3/4" MNPT | 0.51 | R513A | 14.6 | 16.9 | 29.7 | 110 |
DVHA35A100 | 35 | 59.5 | 2.5 | 115/1/60 | 3/4" MNPT | 0.64 | R513A | 14.6 | 16.9 | 29.7 | 117 |
DVHA60A100 | 60 | 101.9 | 4.8 | 115/1/60 | 3/4" FNPT | 0.61 | R513A | 16.6 | 22.4 | 30 | 123 |
DVHA80A100 | 80 | 135.9 | 3.8 | 115/1/60 | 3/4" FNPT | 0.77 | R513A | 16.6 | 22.4 | 30 | 128 |
DVHA100A100 | 100 | 169.9 | 6.4 | 115/1/60 | 1" FNPT | 1.16 | R513A | 16.6 | 22.4 | 30 | 132 |
