| Model # | Configuration | Drive | SCFM | Pressure | Voltage |
| G30TD | AirSystem | Fixed Speed | 116 SCFM | 120 psi | 200/208-60-3 |
| G30TD | AirSystem | Fixed Speed | 116 SCFM | 120 psi | 230-60-3 |
| G30TD | AirSystem | Fixed Speed | 116 SCFM | 120 psi | 460-60-3 |
| G30TD | AirSystem | Fixed Speed | 116 SCFM | 120 psi | 575-60-3 |
| G30TD | AirSystem | Fixed Speed | 106 SCFM | 145 psi | 200/208-60-3 |
| G30TD | AirSystem | Fixed Speed | 106 SCFM | 145 psi | 230-60-3 |
| G30TD | AirSystem | Fixed Speed | 106 SCFM | 145 psi | 460-60-3 |
| G30TD | AirSystem | Fixed Speed | 106 SCFM | 145 psi | 575-60-3 |
| G30TDVSD | AirSystem | VSD | 106 SCFM | 145 psi | 200/208-60-3 |
| G30TDVSD | AirSystem | VSD | 106 SCFM | 145 psi | 230-60-3 |
| G30TDVSD | AirSystem | VSD | 106 SCFM | 145 psi | 460-60-3 |
| G30TDVSD | AirSystem | VSD | 106 SCFM | 145 psi | 575-60-3 |
| G30TDVSD | AirSystem | VSD | 116 SCFM | 120 psi | 200/208-60-3 |
| G30TDVSD | AirSystem | VSD | 116 SCFM | 120 psi | 230-60-3 |
| G30TDVSD | AirSystem | VSD | 116 SCFM | 120 psi | 460-60-3 |
| G30TDVSD | AirSystem | VSD | 116 SCFM | 120 psi | 575-60-3 |

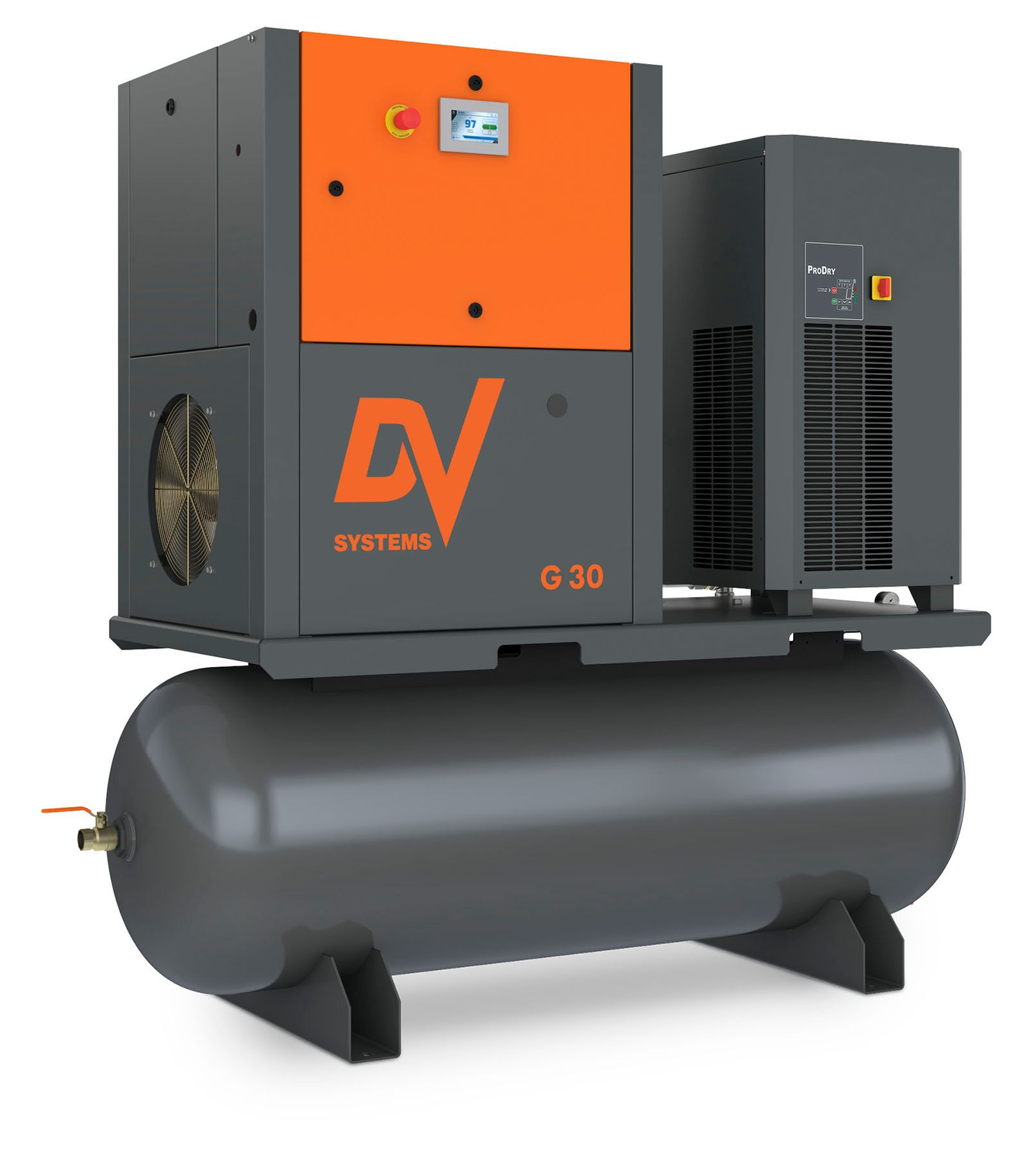

Three Phase Rotary Screw Air Compressor G30
The G Series features an innovative reduced-component, integrated design centred around reliable delivery, durability and efficiency – A 15% smaller footprint and new front-loading fork lift slots make these rugged air compressors more versatile and easier to install.
Engineered with steel tubes and a redesigned air end discharge hose with a dual flange-mounted, stainless-steel, braided flexi-hose for increased ruggedness and durability.
New and enhanced inverter equipped with EMC filters and a DC choke, providing improved harmonic performance.
| Model # | Configuration | Drive | SCFM | Pressure | Voltage |
| G30 | Base-Mounted | Fixed Speed | 116 SCFM | 120 psi | 200/208-60-3 |
| G30 | Base-Mounted | Fixed Speed | 116 SCFM | 120 psi | 230-60-3 |
| G30 | Base-Mounted | Fixed Speed | 116 SCFM | 120 psi | 460-60-3 |
| G30 | Base-Mounted | Fixed Speed | 116 SCFM | 120 psi | 575-60-3 |
| G30 | Base-Mounted | Fixed Speed | 106 SCFM | 145 psi | 200/208-60-3 |
| G30 | Base-Mounted | Fixed Speed | 106 SCFM | 145 psi | 230-60-3 |
| G30 | Base-Mounted | Fixed Speed | 106 SCFM | 145 psi | 460-60-3 |
| G30 | Base-Mounted | Fixed Speed | 106 SCFM | 145 psi | 575-60-3 |
| G30VSD | Base-Mounted | VSD | 116 SCFM | 120 psi | 200/208-60-3 |
| G30VSD | Base-Mounted | VSD | 116 SCFM | 120 psi | 230-60-3 |
| G30VSD | Base-Mounted | VSD | 116 SCFM | 120 psi | 460-60-3 |
| G30VSD | Base-Mounted | VSD | 116 SCFM | 120 psi | 575-60-3 |
| G30VSD | Base-Mounted | VSD | 112 SCFM | 145 psi | 200/208-60-3 |
| G30VSD | Base-Mounted | VSD | 112 SCFM | 145 psi | 230-60-3 |
| G30VSD | Base-Mounted | VSD | 112 SCFM | 145 psi | 460-60-3 |
| G30VSD | Base-Mounted | VSD | 112 SCFM | 145 psi | 575-60-3 |
