Order # | Model # | Configuration | Drive | SCFM | Pressure | Voltage |
H40-50B-001-F | H40 | Base-Mounted | Fixed Speed | 183 SCFM | 110 psi | 230-60-3 |
H40-50B-002-F | H40 | Base-Mounted | Fixed Speed | 166 SCFM | 130 psi | 230-60-3 |
H40-50B-003-F | H40 | Base-Mounted | Fixed Speed | 137 SCFM | 175 psi | 230-60-3 |
H40-50B-004-F | H40 | Base-Mounted | Fixed Speed | 183 SCFM | 110 psi | 460-60-3 |
H40-50B-005-F | H40 | Base-Mounted | Fixed Speed | 166 SCFM | 130 psi | 460-60-3 |
H40-50B-006-F | H40 | Base-Mounted | Fixed Speed | 137 SCFM | 175 psi | 460-60-3 |
H40-50B-007-F | H40 | Base-Mounted | Fixed Speed | 183 SCFM | 110 psi | 575-60-3 |
H40-50B-008-F | H40 | Base-Mounted | Fixed Speed | 166 SCFM | 130 psi | 575-60-3 |
H40-50B-009-F | H40 | Base-Mounted | Fixed Speed | 137 SCFM | 175 psi | 575-60-3 |
H40-50VSDB-001-F | H40 | Base-Mounted | VSD | 159 SCFM | 145 psi | 230-60-3 |
H40-50VSDB-002-F | H40 | Base-Mounted | VSD | 159 SCFM | 145 psi | 460-60-3 |
H40-50VSDB-003-F | H40 | Base-Mounted | VSD | 159 SCFM | 145 psi | 575-60-3 |
H Series rotary screw air compressors operate at a 100% duty cycle and are ideal for intermittent to continuous-use applications where reliable, dry, clean compressed air is required.

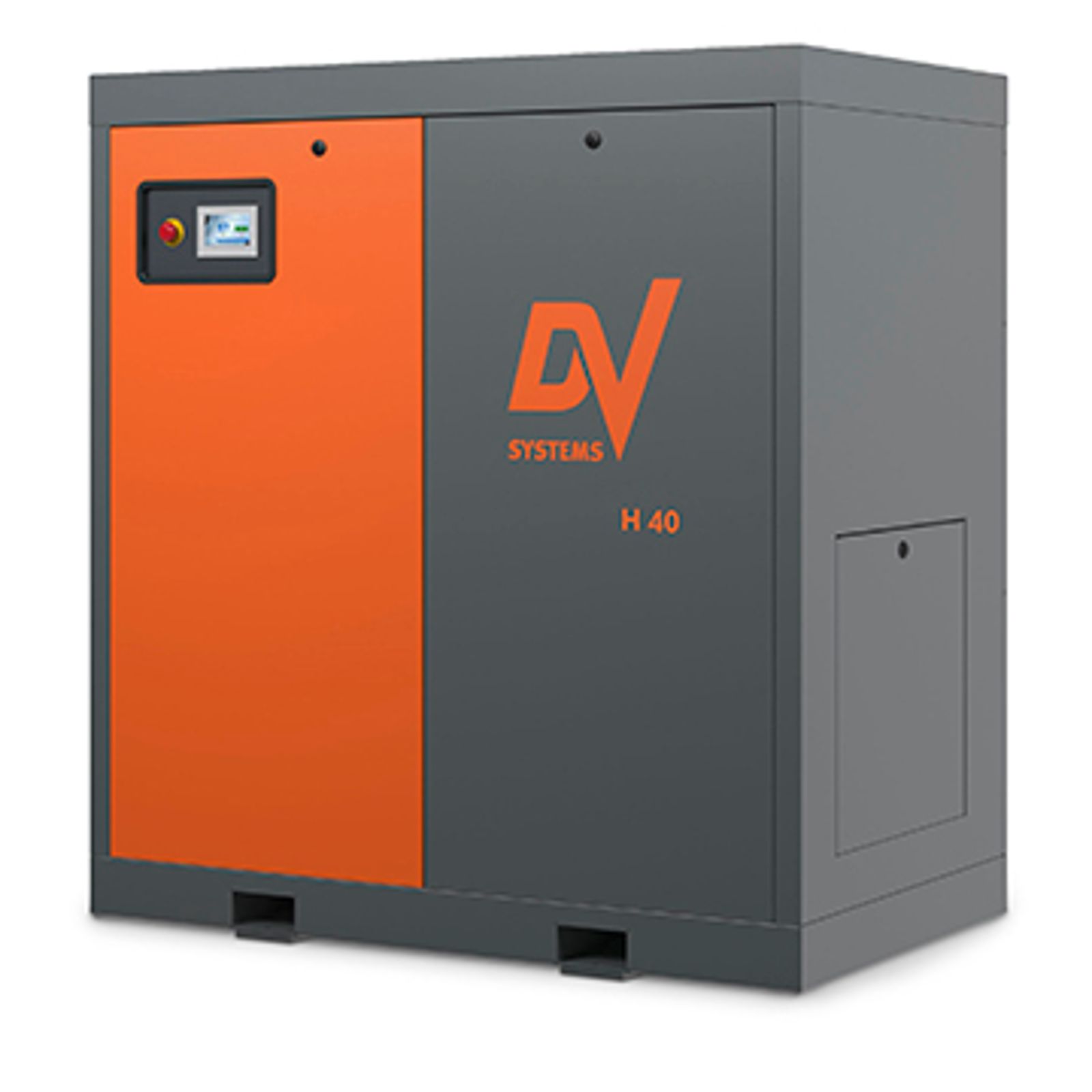

The H40 rotary screw air compressor features fixed or variable speed gear drive technology and delivers 185 SCFM of compressed air at 100 PSI.
Integrated Airend Design
The H40 airend uses an integrated design with oil filter and thermostatic bypass valve to reduce the number of external components and increase reliability.
Governor Controller
Premium colour touch screen microprocessor controller with simple, intuitive navigation to effectively manage, monitor, and maintain compressor performance.
Innovative Design
Innovative component integration results in a compact, quiet air system engineered for efficiency & performance, providing high-capacity air delivery and stable system pressure with minimal installation space.
Variable Speed Option
Ensures energy efficiency by constantly aligning energy use with air demand, adjusting motor speed to provide optimum performance and providing energy savings up to 25%.
Solid & Silent
Effectively minimizes noise levels: solid steel base frames & floors, powder-coated, heavy gauge, acoustically insulated steel cabinets & sound attenuating foam barriers.
Gear Drive
Enables efficient power transmission and optimizes power consumption, providing more air with less energy and maximum durability.
Accessories
DV Systems provides a comprehensive range of compressed air treatment products and air system accessories including dryers, filters, separators, air receivers, auto drains, installation kits, remote start equipment and more.
5 Year Extended Warranty
