Model # | Configuration | Drive | SCFM | Pressure | Voltage |
G25TD | AirSystem | Fixed Speed | 100 SCFM | 120 psi | 200/208-60-3 |
G25TD | AirSystem | Fixed Speed | 100 SCFM | 120 psi | 230-60-3 |
G25TD | AirSystem | Fixed Speed | 100 SCFM | 120 psi | 460-60-3 |
G25TD | AirSystem | Fixed Speed | 100 SCFM | 120 psi | 575-60-3 |
G25TD | AirSystem | Fixed Speed | 91 SCFM | 145 psi | 200/208-60-3 |
G25TD | AirSystem | Fixed Speed | 91 SCFM | 145 psi | 230-60-3 |
G25TD | AirSystem | Fixed Speed | 91 SCFM | 145 psi | 460-60-3 |
G25TD | AirSystem | Fixed Speed | 91 SCFM | 145 psi | 575-60-3 |
G25TDVSD | AirSystem | VSD | 91 SCFM | 145 psi | 200/208-60-3 |
G25TDVSD | AirSystem | VSD | 91 SCFM | 145 psi | 230-60-3 |
G25TDVSD | AirSystem | VSD | 91 SCFM | 145 psi | 460-60-3 |
G25TDVSD | AirSystem | VSD | 91 SCFM | 145 psi | 575-60-3 |
G25TDVSD | AirSystem | VSD | 100 SCFM | 120 psi | 200/208-60-3 |
G25TDVSD | AirSystem | VSD | 100 SCFM | 120 psi | 230-60-3 |
G25TDVSD | AirSystem | VSD | 100 SCFM | 120 psi | 460-60-3 |
G25TDVSD | AirSystem | VSD | 100 SCFM | 120 psi | 575-60-3 |

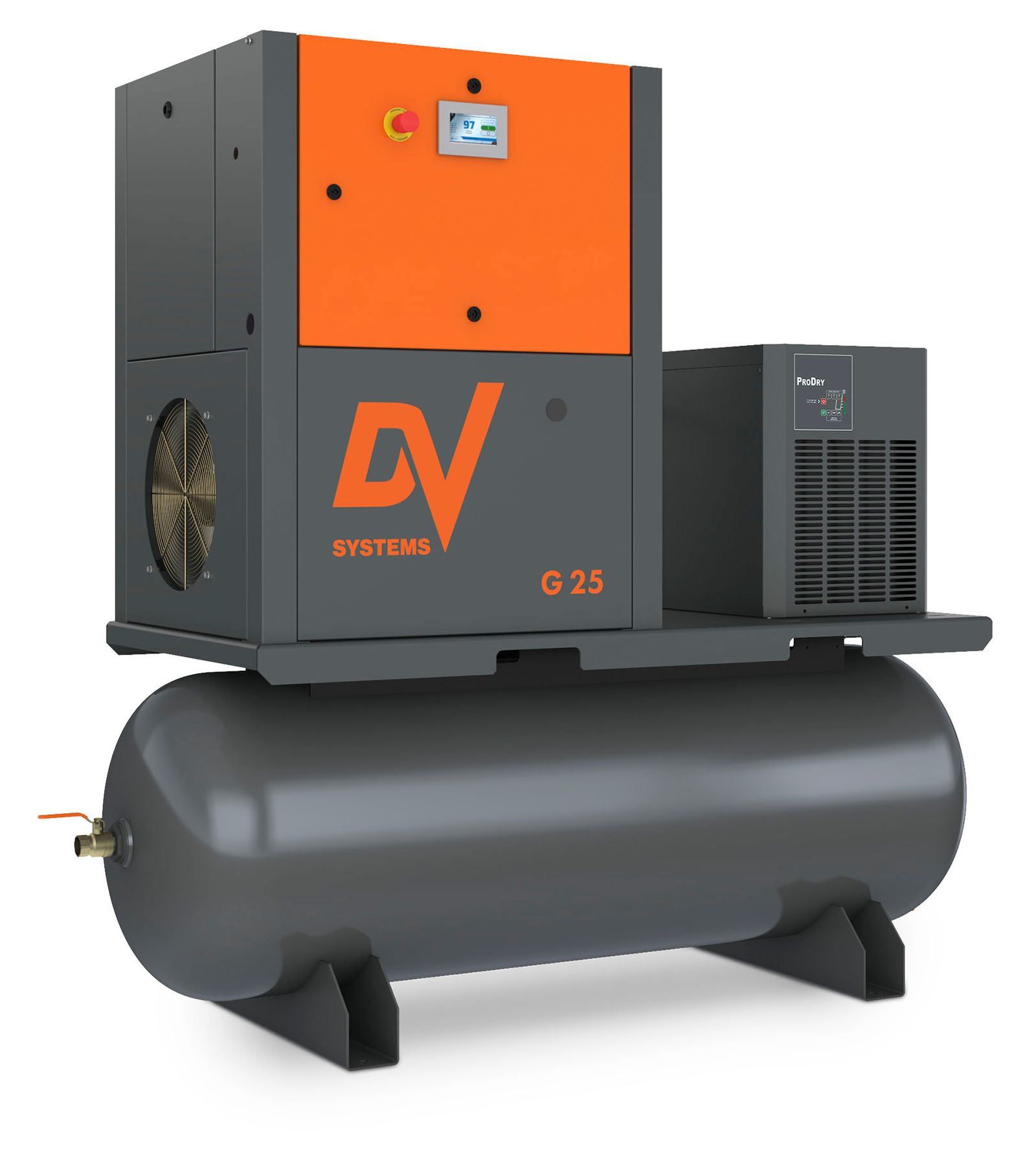

The G Series features an innovative reduced-component, integrated design centred around reliable delivery, durability and efficiency – A 15% smaller footprint and new front-loading fork lift slots make these rugged air compressors more versatile and easier to install.
Engineered with steel tubes and a redesigned air end discharge hose with a dual flange-mounted, stainless-steel, braided flexi-hose for increased ruggedness and durability.
New and enhanced inverter equipped with EMC filters and a DC choke, providing improved harmonic performance.
Model # | Configuration | Drive | SCFM | Pressure | Voltage |
G25 | Base-Mounted | Fixed Speed | 100 SCFM | 120 psi | 200/208-60-3 |
G25 | Base-Mounted | Fixed Speed | 100 SCFM | 120 psi | 230-60-3 |
G25 | Base-Mounted | Fixed Speed | 100 SCFM | 120 psi | 460-60-3 |
G25 | Base-Mounted | Fixed Speed | 100 SCFM | 120 psi | 575-60-3 |
G25 | Base-Mounted | Fixed Speed | 91 SCFM | 145 psi | 200/208-60-3 |
G25 | Base-Mounted | Fixed Speed | 91 SCFM | 145 psi | 230-60-3 |
G25 | Base-Mounted | Fixed Speed | 91 SCFM | 145 psi | 460-60-3 |
G25 | Base-Mounted | Fixed Speed | 91 SCFM | 145 psi | 575-60-3 |
G25VSD | Base-Mounted | VSD | 100 SCFM | 120 psi | 200/208-60-3 |
G25VSD | Base-Mounted | VSD | 100 SCFM | 120 psi | 230-60-3 |
G25VSD | Base-Mounted | VSD | 100 SCFM | 120 psi | 460-60-3 |
G25VSD | Base-Mounted | VSD | 100 SCFM | 120 psi | 575-60-3 |
G25VSD | Base-Mounted | VSD | 91 SCFM | 145 psi | 200/208-60-3 |
G25VSD | Base-Mounted | VSD | 91 SCFM | 145 psi | 230-60-3 |
G25VSD | Base-Mounted | VSD | 91 SCFM | 145 psi | 460-60-3 |
G25VSD | Base-Mounted | VSD | 91 SCFM | 145 psi | 575-60-3 |
✔ Variable Speed, Belt Drive
Ideal for continuous-use applications with constant compressed air demand. Efficient power transmission provides maximum flexibility in pressure selection.
✔ Fixed-Speed, Belt Drive
Ideal for continuous-use applications with constant compressed air demand. Efficient power transmission provides maximum flexibility in pressure selection.
✔ AirSystem
A complete solution for your entire compressed air system requirements, providing clean, dry, cool compressed air.
✔ Engineered For Efficiency
The simplified, reduced-component, encapsulated airend design enhances reliability and contributes to quiet & efficient operation.
✔ CSC300 Controller
Effectively manages, monitors and maintains optimal operational parameters to ensure stable system pressure and reliable operation.
✔ DryTank™
A unique compressed air system configuration delivering clean, dry compressed air continuously, consistently and directly to the air receiver.
✔ Governor Controller
Premium colour touch screen microprocessor controller with simple, intuitive navigation to effectively manage, monitor and maintain compressor performance.
