Model # | Configuration | Drive | SCFM | Pressure | Voltage |
G20TD | AirSystem | Fixed Speed | 82 SCFM | 120 psi | 200/208-60-3 |
G20TD | AirSystem | Fixed Speed | 82 SCFM | 120 psi | 230-60-3 |
G20TD | AirSystem | Fixed Speed | 82 SCFM | 120 psi | 460-60-3 |
G20TD | AirSystem | Fixed Speed | 82 SCFM | 120 psi | 575-60-3 |
G20TD | AirSystem | Fixed Speed | 73 SCFM | 145 psi | 200/208-60-3 |
G20TD | AirSystem | Fixed Speed | 73 SCFM | 145 psi | 230-60-3 |
G20TD | AirSystem | Fixed Speed | 73 SCFM | 145 psi | 460-60-3 |
G20TD | AirSystem | Fixed Speed | 73 SCFM | 145 psi | 575-60-3 |

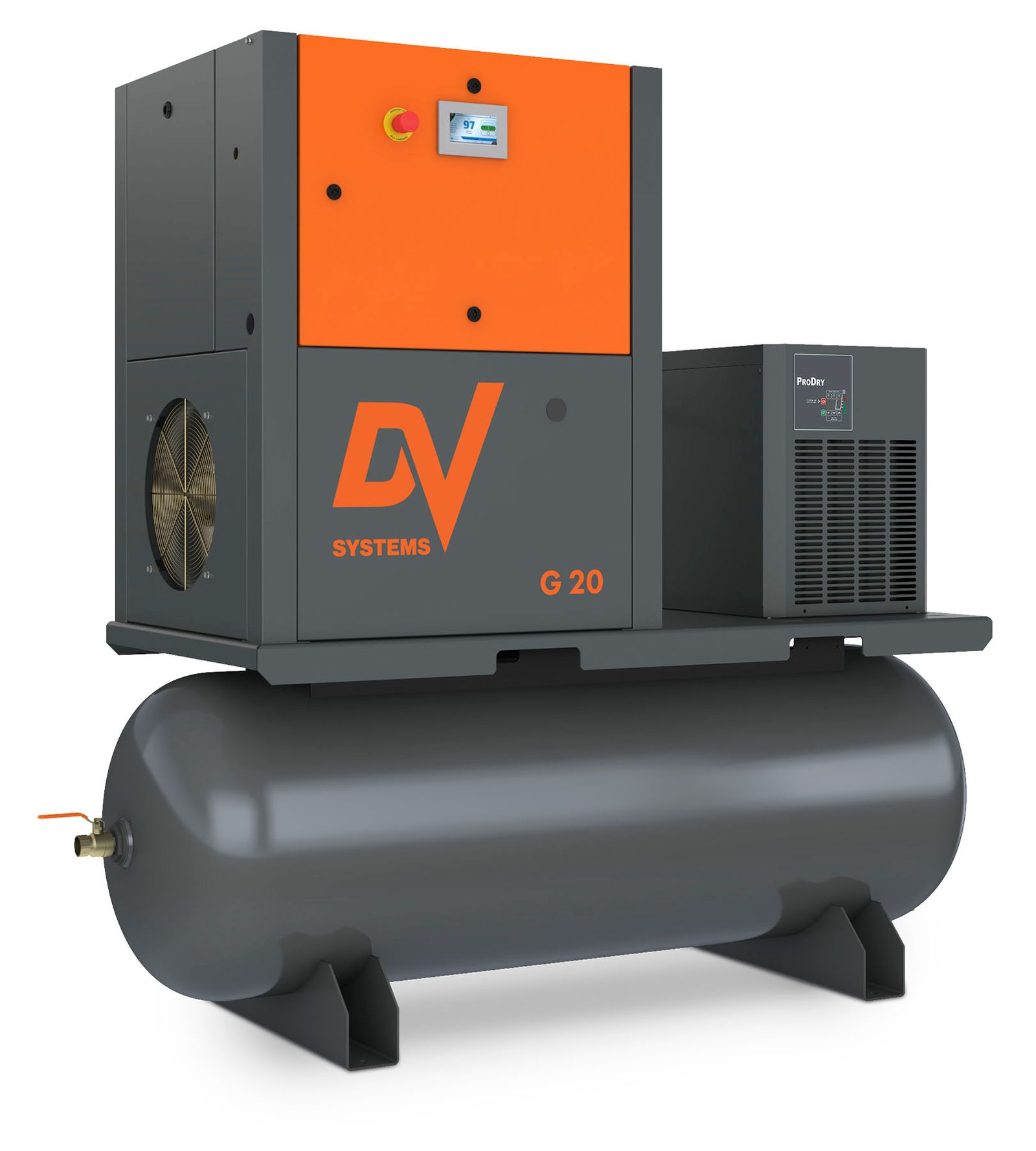

The G Series features an innovative reduced-component, integrated design centred around reliable delivery, durability and efficiency – A 15% smaller footprint and new front-loading fork lift slots make these rugged air compressors more versatile and easier to install.
Engineered with steel tubes and a redesigned air end discharge hose with a dual flange-mounted, stainless-steel, braided flexi-hose for increased ruggedness and durability.
Model # | Configuration | Drive | SCFM | Pressure | Voltage |
G20 | Base-Mounted | Fixed Speed | 82 SCFM | 120 psi | 200/208-60-3 |
G20 | Base-Mounted | Fixed Speed | 82 SCFM | 120 psi | 230-60-3 |
G20 | Base-Mounted | Fixed Speed | 82 SCFM | 120 psi | 460-60-3 |
G20 | Base-Mounted | Fixed Speed | 82 SCFM | 120 psi | 575-60-3 |
G20 | Base-Mounted | Fixed Speed | 73 SCFM | 145 psi | 200/208-60-3 |
G20 | Base-Mounted | Fixed Speed | 73 SCFM | 145 psi | 230-60-3 |
G20 | Base-Mounted | Fixed Speed | 73 SCFM | 145 psi | 460-60-3 |
G20 | Base-Mounted | Fixed Speed | 73 SCFM | 145 psi | 575-60-3 |
✔ Fixed-Speed, Direct Drive
Ideal for continuous-use applications with constant compressed air demand. Efficient power transmission provides maximum flexibility in pressure selection.
✔ Integrated Oil & Air Cooler
Contributes to the production of low discharge air temperatures, reducing energy consumption, promoting system reliability & extending air-receiver life.
✔ Integrated Innovative Design
Innovative component integration results in a compact, quiet air system engineered for efficiency & performance, providing high-capacity air delivery and stable system pressure with minimal installation space.
✔ AirSystem
A complete solution for your entire compressed air system requirements, providing clean, dry, cool compressed air.
✔ Solid & Silent
Effectively minimizes noise levels: solid steel base frames & floors, powder-coated, heavy gauge, acoustically insulated steel cabinets & sound attenuating foam barriers.
✔ DryTank™
A unique compressed air system configuration delivering clean, dry compressed air continuously, consistently and directly to the air receiver.
✔ Engineered For Efficiency
The simplified, reduced-component, encapsulated airend design enhances reliability and contributes to quiet & efficient operation.
✔ Governor Controller
Premium colour touch screen microprocessor controller with simple, intuitive navigation to effectively manage, monitor and maintain compressor performance.
