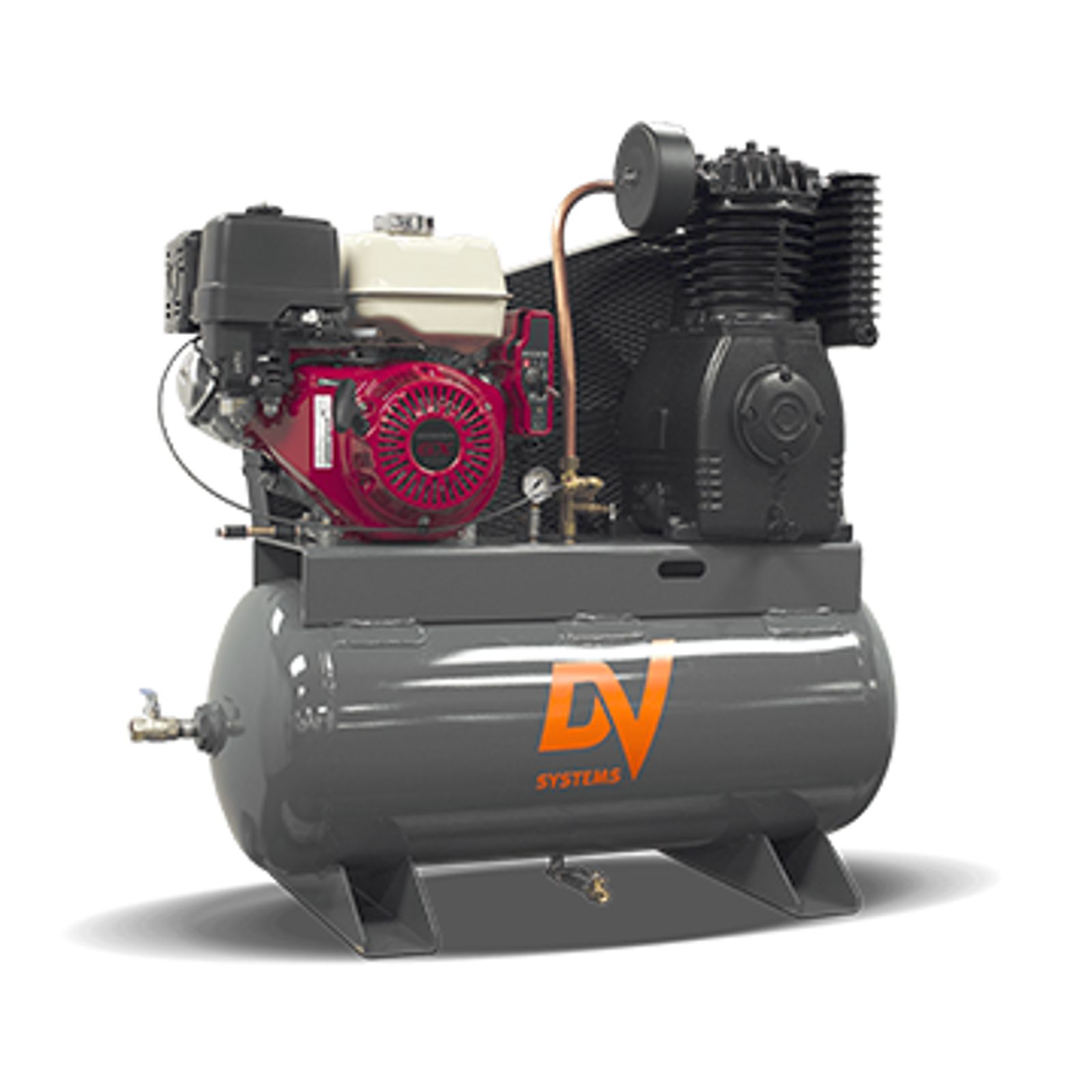

13 HP Gas HDI 247 PUMP Pump is available in the following base-mounted models:
Order # | Model # | SCFM | Pressure | Configuration | Tank | Voltage |
TASE-5000 | TASE-5000 | 25.9 SCFM | 150 | Base-mounted | N/A | N/A |
The pressure-lubricated heavy duty industrial series is engineered to provide a durable and dependable air compressor built to withstand the most demanding industrial environments.
The moving components of these pumps are machined, honed, balanced and assembled in Canada. Rugged construction and long life allows DV to confidently offer an unprecedented 7 year warranty.
Media 13 HP Gas HDI 247 PUMP Pump Available Models Tank-Mounted.xlsx
Order # | Model # | SCFM | Pressure | Configuration | Tank G | Voltage |
TASE-5030 | TASE-5030 | 29.5 SCFM | 150 | Tank-Horizontal | 30 Horizontal | N/A |
✔ Smooth, Free-Running Operation
Balanced crankshafts and precision ground journals, combined with heavy-duty ball-type main bearings, provide smooth, free-running operation.
✔ Precision-Machined Cylinders
All cylinders are precision honed and machined to exact tolerances, reducing wear and friction.
✔ Smooth, Vibration-Free Operation
Dynamically balanced, Airfoil-Type Flywheels provide a continuous flow of cooling air over all parts of the compressor.
✔ Controlled Lubrication
DV’s proprietary pressure lubrication process provides controlled lubrication to all critical areas by means of oil ring pickup
✔ Cool, Maintenance-Free Operation
Short stroke load matched pistons, combined with high quality alloy steel disc-type valves permit cool operation and maintenance-free service.
✔ Short Stroke Design
Large bore, short-stroke and slow operating speeds improves life expectancy and provides high air delivery.
