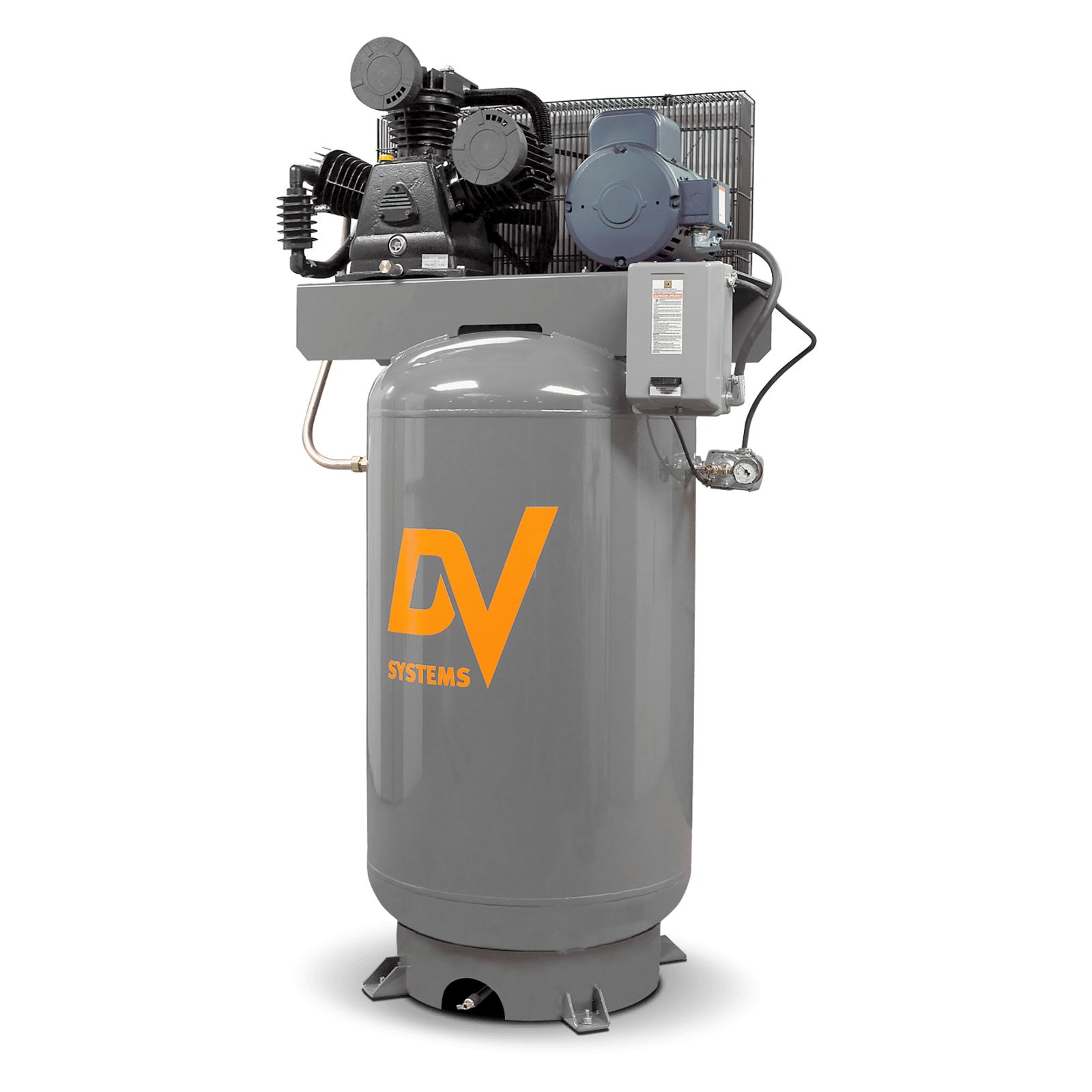

7.5 HP Industrial Series Air Compressor

Industrial Series air compressors are ideal for light industrial, commercial and professional applications.

Featuring splash-lubricated, cast-iron pumps designed for high air delivery at low speeds, these units perform reliably, with low wear & downtime.

7.5 HP Industrial Series DEV-100 Pump is available in the following tank-mounted horizontal models:

Order #	Model #	SCFM	Pressure	Configuration	Tank G	Voltage
IS7-100120-03	IS7-100120	22.7 SCFM	150	Tank-mounted	120 G Horizontal	230-60-1
IS7-100120-41	IS7-100120	22.7 SCFM	150	Tank-mounted	120 G Horizontal	200/208-60-3
IS7-100120-43	IS7-100120	22.7 SCFM	150	Tank-mounted	120 G Horizontal	230-60-3
IS7-100120-45	IS7-100120	22.7 SCFM	150	Tank-mounted	120 G Horizontal	460-60-3
IS7-100120-69	IS7-100120	22.7 SCFM	150	Tank-mounted	120 G Horizontal	575-60-3

7.5 HP Industrial Series DEV-100 Pump is available in the following tank-mounted vertical models:

Order #	Model #	SCFM	Pressure	Configuration	Tank G	Voltage
IS7-10080-03	IS7-10080	22.7 SCFM	150	Tank-mounted	80 G Vertical	230-60-1
IS7-10080-41	IS7-10080	22.7 SCFM	150	Tank-mounted	80 G Vertical	200/208-60-3
IS7-10080-43	IS7-10080	22.7 SCFM	150	Tank-mounted	80 G Vertical	230-60-3
IS7-10080-45	IS7-10080	22.7 SCFM	150	Tank-mounted	80 G Vertical	460-60-3
IS7-10080-69	IS7-10080

✔ Simple, Strong & Economical

Ideal for Light Industrial & Commercial Use

✔ Cast-Iron Compressor Pumps

60% Duty-Cycle Operation

✔ Reliable & Safe

OSHA Fully-Enclosed Belt-Guard & Motor with Overload Protection
