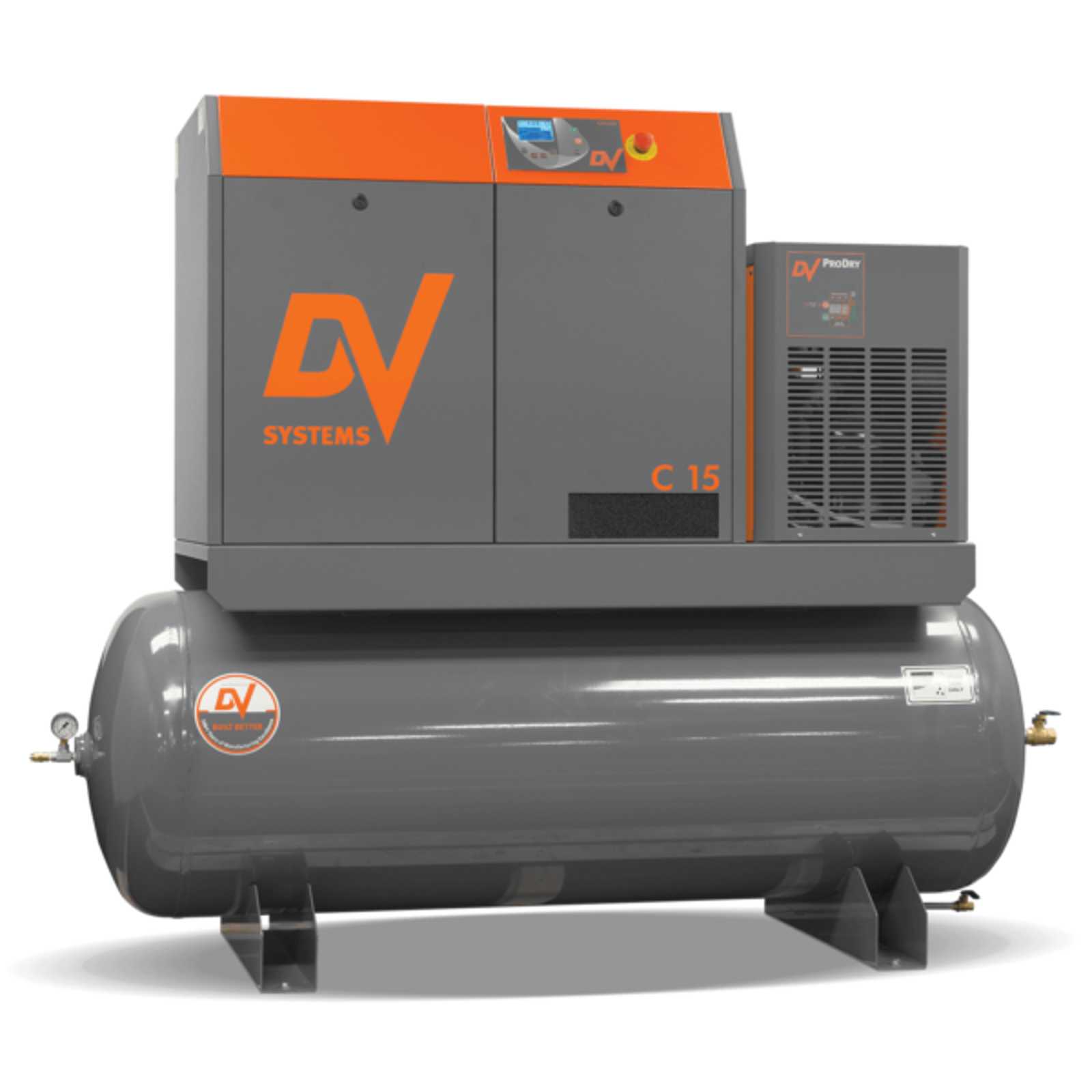

The C-Series rotary screw air compressors operate at a 100% duty cycle and are ideal for continuous-use or intermittent-use applications where reliable, dry, clean compressed air is required.
The C10 rotary screw air compressor features fixed speed, belt drive technology and delivers 39 SCFM of compressed air at 145 PSI.
Order # | Model # | Configuration | Drive | SCFM | Pressure | Voltage |
S-002406 | C10 | Base-Mounted | Fixed Speed | 39 SCFM | 145 psi | 200/208-60-3 |
S-002407 | C10 | Base-Mounted | Fixed Speed | 39 SCFM | 145 psi | 230-60-3 |
S-002408 | C10 | Base-Mounted | Fixed Speed | 39 SCFM | 145 psi | 460-60-3 |
S-002409 | C10 | Base-Mounted | Fixed Speed | 39 SCFM | 145 psi | 575-60-3 |
S-002486 | C10T | Tank-Mounted | Fixed Speed | 39 SCFM | 145 psi | 200/208-60-3 |
S-002487 | C10T | Tank-Mounted | Fixed Speed | 39 SCFM | 145 psi | 230-60-3 |
S-002488 | C10T | Tank-Mounted | Fixed Speed | 39 SCFM | 145 psi | 460-60-3 |
S-002489 | C10T | Tank-Mounted | Fixed Speed | 39 SCFM | 145 psi | 575-60-3 |
S-002426 | C10TD | AirSystem | Fixed Speed | 39 SCFM | 145 psi | 200/208-60-3 |
S-002427 | C10TD | AirSystem | Fixed Speed | 39 SCFM | 145 psi | 230-60-3 |
S-002428 | C10TD | AirSystem | Fixed Speed | 39 SCFM | 145 psi | 460-60-3 |
S-002429 | C10TD | AirSystem | Fixed Speed | 39 SCFM | 145 psi | 575-60-3 |
✔ Fixed-Speed, Direct Drive
Ideal for continuous-use applications with constant compressed air demand. Efficient power transmission provides maximum flexibility in pressure selection.
✔ Integrated Oil & Air Cooler
Contributes to the production of low discharge air temperatures, reducing energy consumption, promoting system reliability & extending air-receiver life.
✔ Integrated Innovative Design
Innovative component integration results in a compact, quiet air system engineered for efficiency & performance, providing high-capacity air delivery and stable system pressure with minimal installation space.
✔ AirSystem
A complete solution for your entire compressed air system requirements, providing clean, dry, cool compressed air.
✔ Solid & Silent
Effectively minimizes noise levels: solid steel base frames & floors, powder-coated, heavy gauge, acoustically insulated steel cabinets & sound attenuating foam barriers.
✔ DryTank™
A unique compressed air system configuration delivering clean, dry compressed air continuously, consistently and directly to the air receiver.
✔ Engineered For Efficiency
The simplified, reduced-component, encapsulated airend design enhances reliability and contributes to quiet & efficient operation.
✔ CSC300 Controller
Effectively manages, monitors and maintains optimal operational parameters to ensure stable system pressure and reliable operation.
C10/C15 Series
Brochure, English
C10/C15 Series
Brochure, French
C10/C15 Series
Product Manual, English
C10/C15 Series
Specification Drawing, English
C10/C15 Series
Specification Drawing, English
C10/C15 Series
Specification Drawing, English
C10/C15 Series
Warranty, English
Dv Lube 3000
Safety Data Sheet, English
