Order # | Model # | Configuration | Drive | SCFM | Pressure | Voltage |
S-001726 | B7.5 | Base-Mounted | Fixed Speed | 27 SCFM | 145 psi | 230-60-1 |
S-001727 | B7.5 | Base-Mounted | Fixed Speed | 27 SCFM | 145 psi | 200/208-60-3 |
S-001728 | B7.5 | Base-Mounted | Fixed Speed | 27 SCFM | 145 psi | 230-60-3 |
S-001729 | B7.5 | Base-Mounted | Fixed Speed | 27 SCFM | 145 psi | 460-60-3 |
S-001730 | B7.5 | Base-Mounted | Fixed Speed | 27 SCFM | 145 psi | 575-60-3 |
S-001706 | B7.5T | Tank-Mounted | Fixed Speed | 27 SCFM | 145 psi | 230-60-1 |
S-001707 | B7.5T | Tank-Mounted | Fixed Speed | 27 SCFM | 145 psi | 200/208-60-3 |
S-001708 | B7.5T | Tank-Mounted | Fixed Speed | 27 SCFM | 145 psi | 230-60-3 |
S-001709 | B7.5T | Tank-Mounted | Fixed Speed | 27 SCFM | 145 psi | 460-60-3 |
S-001710 | B7.5T | Tank-Mounted | Fixed Speed | 27 SCFM | 145 psi | 575-60-3 |
S-001766 | B7.5TD | AirSystem | Fixed Speed | 27 SCFM | 145 psi | 230-60-1 |
S-001767 | B7.5TD | AirSystem | Fixed Speed | 27 SCFM | 145 psi | 200/208-60-3 |
S-001768 | B7.5TD | AirSystem | Fixed Speed | 27 SCFM | 145 psi | 230-60-3 |
S-001769 | B7.5TD | AirSystem | Fixed Speed | 27 SCFM | 145 psi | 460-60-3 |
S-001770 | B7.5TD | AirSystem | Fixed Speed | 27 SCFM | 145 psi | 575-60-3 |
These heavy-duty, high-performance & high-efficiency Rotary Screw Compressors operate at a 100% duty cycle and are ideal for continuous-use applications where reliable, dry, clean compressed air is required.
The B7.5 rotary screw compressor features fixed speed, belt drive technology and delivers 27 SCFM of compressed air at 145 PSI.
✔ Fixed-Speed, Belt Drive
Ideal for continuous-use applications with constant compressed air demand. Efficient power transmission provides maximum flexibility in pressure selection.
✔ Integrated Oil & Air Cooler
Contributes to the production of low discharge air temperatures, reducing energy consumption, promoting system reliability & extending air-receiver life.
✔ AirSystem
A complete solution for your entire compressed air system requirements, providing clean, dry, cool compressed air.
✔ Solid & Silent
Effectively minimizes noise levels: solid steel base frames & floors, powder-coated, heavy gauge, acoustically insulated steel cabinets & sound attenuating foam barriers.
✔ DryTank™
A unique compressed air system configuration delivering clean, dry compressed air continuously, consistently and directly to the air receiver.
✔ Engineered For Efficiency

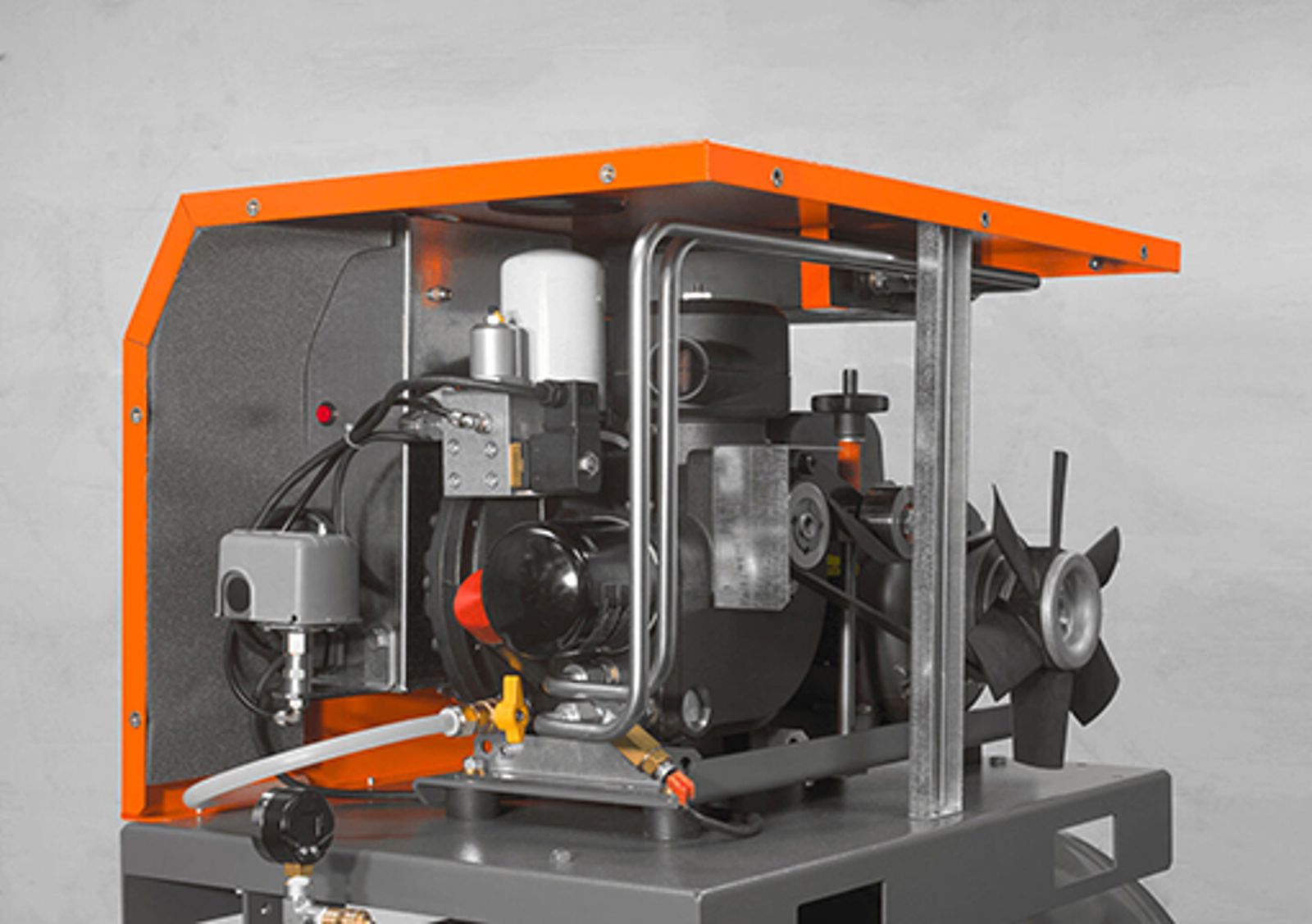

The simplified, reduced-component, encapsulated airend design enhances reliability and contributes to quiet & efficient operation.
