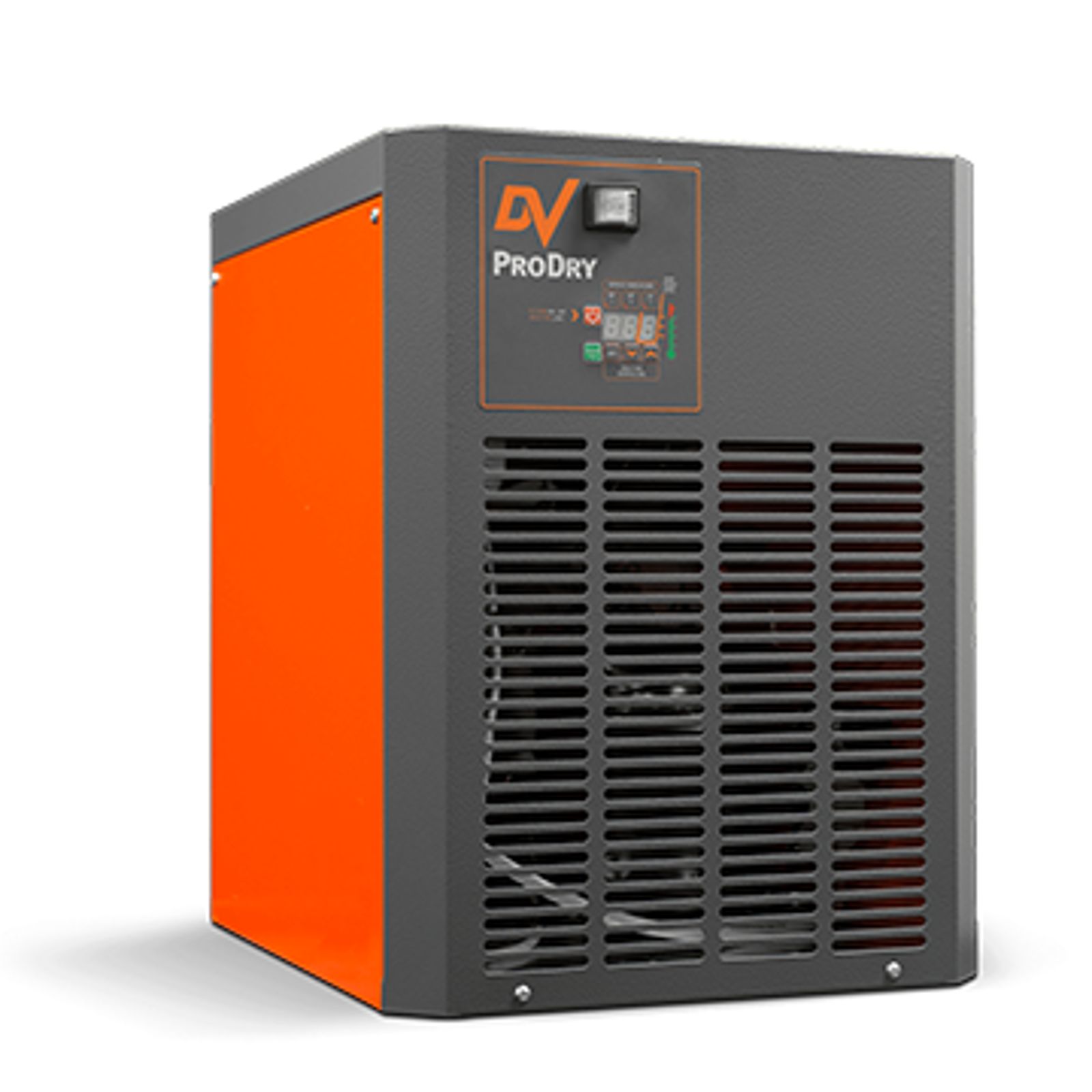

ASD Series Standard Temperature Air Dryers

An electronic drain valve which automatically discharges condensate at predetermined intervals, every X minutes for Y seconds → The moisture is filtered at the strainer/ball-valve and any large particles are captured by an internal stainless steel mesh filter.

All ProDry ASD Air Dryers are equipped with a 2-stage heat-exchanger, improving efficiency and energy savings, and include a high-efficiency condensate separator and large surface-area refrigerant condenser.

ProDry™ ASD Air Dryers are equipped with a timer auto drain.

Order #	Capacity SCFM	Max. Pressure PSI	Electrical
ASD10	10	232 PSI	115/60/1
ASD15	15	232 PSI	115/60/1
ASD30	30	232 PSI	115/60/1
ASD40	40	232 PSI	115/60/1
ASD60	60	232 PSI	115/60/1
ASD100	100	232 PSI	115/60/1
ASD150	150	174 PSI	230/60/1
ASD200	200	174 PSI	230/60/1
ASD320	320	174 PSI	230/60/1
ASD400	400	174 PSI	230/60/1
ASD500	500	174 PSI	460/60/3
ASD600	600	174 PSI	460/60/3
ASD800	800	174 PSI	460/60/3
ASD1100	1100	174 PSI	460/60/3
ASD1400	1400	174 PSI	460/60/3
